Hot Rod is a binary TCP client/server protocol that gives fast access to data in remote Infinispan caches. The Hot Rod Java client provides automatic load balancing and failover along with intelligence capabilities that use consistent hash techniques to efficiently locate cache entries.

1. Hot Rod Java Clients

Access Infinispan remotely through the Hot Rod Java client API.

1.1. Hot Rod Protocol

Hot Rod is a binary TCP protocol that Infinispan offers high-performance client-server interactions with the following capabilities:

  • Load balancing. Hot Rod clients can send requests across Infinispan clusters using different strategies.

  • Failover. Hot Rod clients can monitor Infinispan cluster topology changes and automatically switch to available nodes.

  • Efficient data location. Hot Rod clients can find key owners and make requests directly to those nodes, which reduces latency.

The client only supports Hot Rod protocol version 3.0 and newer. The server supports Hot Rod protocol version 2.0 and newer. If a client is needed that supports older versions up to 2.0 the hotrod-client-legacy module can be used.

1.2. Client Intelligence

Hot Rod clients use intelligence mechanisms to efficiently send requests to Infinispan Server clusters. By default, the Hot Rod protocol has the HASH_DISTRIBUTION_AWARE intelligence mechanism enabled.

BASIC intelligence

Clients do not receive topology change events for Infinispan clusters, such as nodes joining or leaving, and use only the list of Infinispan Server network locations that you add to the client configuration.

Enable BASIC intelligence to use the Hot Rod client configuration when a Infinispan Server does not send internal and hidden cluster topology to the Hot Rod client.
TOPOLOGY_AWARE intelligence

Clients receive and store topology change events for Infinispan clusters to dynamically keep track of Infinispan Servers on the network.

To receive cluster topology, clients need the network location, either IP address or host name, of at least one Hot Rod server at startup. After the client connects, Infinispan Server transmits the topology to the client. When Infinispan Server nodes join or leave the cluster, Infinispan transmits an updated topology to the client.

HASH_DISTRIBUTION_AWARE intelligence

Clients receive and store topology change events for Infinispan clusters in addition to hashing information that enables clients to identify which nodes store specific keys.

For example, consider a put(k,v) operation. The client calculates the hash value for the key so it can locate the exact Infinispan Server node on which the data resides. Clients can then connect directly to that node to perform read and write operations.

The benefit of HASH_DISTRIBUTION_AWARE intelligence is that Infinispan Server does not need to look up values based on key hashes, which uses less server-side resources. Another benefit is that Infinispan Server responds to client requests more quickly because they do not need to make additional network roundtrips.

Configuration

By default, Hot Rod client uses the intelligence that you configure globally for all the Infinispan clusters.

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.clientIntelligence(ClientIntelligence.BASIC);
hotrod-client.properties
infinispan.client.hotrod.client_intelligence=BASIC

When you configure Hot Rod client to use multiple Infinispan clusters you can use different intelligence for each of the clusters.

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.addCluster("NYC").clusterClientIntelligence(ClientIntelligence.BASIC);
hotrod-client.properties
infinispan.client.hotrod.cluster.intelligence.NYC=BASIC

Failed Server Timeout

If a server does not report the topology as BASIC, or the client is unable to connect to a server due to network issues, the client will mark the server as failed. A client does not attempt to connect to a server marked as failed until the client receives an updated topology. Because BASIC topology never sends an update, the client will not re-attempt connection.

To avoid such a situation, you can use the serverFailureTimeout setting that clears the failed server status after a defined period of time. Infinispan will try to reconnect to the server after the defined timeout. If the server is still unreachable, it is marked as failed again and the connection will be re-attempted after the defined timeout. You can disabled reconnection attempts by setting the serverFailureTimeout value to -1.

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.serverFailureTimeout(5000).clusterClientIntelligence(ClientIntelligence.BASIC);
hotrod-client.properties
infinispan.client.hotrod.server_failure_timeout=5000
infinispan.client.hotrod.client_intelligence=BASIC
Additional resources

1.3. Request Balancing

Hot Rod Java clients balance requests to Infinispan Server clusters so that read and write operations are spread across nodes.

Clients that use BASIC or TOPOLOGY_AWARE intelligence use request balancing for all requests. Clients that use HASH_DISTRIBUTION_AWARE intelligence send requests directly to the node that stores the desired key. If the node does not respond, the clients then fall back to request balancing.

The default balancing strategy is round-robin, so Hot Rod clients perform request balancing as in the following example where s1, s2, s3 are nodes in a Infinispan cluster:

// Connect to the Infinispan cluster
RemoteCacheManager cacheManager = new RemoteCacheManager(builder.build());
// Obtain the remote cache
RemoteCache<String, String> cache = cacheManager.getCache("test");

//Hot Rod client sends a request to the "s1" node
cache.put("key1", "aValue");
//Hot Rod client sends a request to the "s2" node
cache.put("key2", "aValue");
//Hot Rod client sends a request to the "s3" node
String value = cache.get("key1");
//Hot Rod client sends the next request to the "s1" node again
cache.remove("key2");
Custom balancing policies

You can use custom FailoverRequestBalancingStrategy implementations if you add your class in the Hot Rod client configuration.

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.addServer()
         .host("127.0.0.1")
         .port(11222)
         .balancingStrategy(new MyCustomBalancingStrategy());
hotrod-client.properties
infinispan.client.hotrod.request_balancing_strategy=my.package.MyCustomBalancingStrategy
Additional resources

1.4. Client Failover

Hot Rod clients can automatically failover when Infinispan cluster topologies change. For instance, Hot Rod clients that are topology-aware can detect when one or more Infinispan servers fail.

In addition to failover between clustered Infinispan servers, Hot Rod clients can failover between Infinispan clusters.

For example, you have a Infinispan cluster running in New York (NYC) and another cluster running in London (LON). Clients sending requests to NYC detect that no nodes are available so they switch to the cluster in LON. Clients then maintain connections to LON until you manually switch clusters or failover happens again.

Transactional Caches with Failover

Conditional operations, such as putIfAbsent(), replace(), remove(), have strict method return guarantees. Likewise, some operations can require previous values to be returned.

Even though Hot Rod clients can failover, you should use transactional caches to ensure that operations do not partially complete and leave conflicting entries on different nodes.

1.5. Hot Rod client compatibility with Infinispan Server

Infinispan Server allows you to connect Hot Rod clients with different versions. For instance during a migration or upgrade to your Infinispan cluster, the Hot Rod client version might be a lower Infinispan version than Infinispan Server.

Infinispan recommends using the latest Hot Rod client version to benefit from the most recent capabilities and security enhancements.
Infinispan 10 and later

Hot Rod protocol version 3.x automatically negotiates the highest version possible for clients with Infinispan Server.

Infinispan 9.4 and earlier

The client no longer supports HotRod protocol versions older than 3.0. As such you must use an older client or the hotrod-client-legacy module.

Clients that use a Hot Rod protocol version that is higher than the Infinispan Server version must set the infinispan.client.hotrod.protocol_version property.

Additional resources

2. Adding Infinispan to your Maven repository

Infinispan Java distributions are available from Maven.

Infinispan artifacts are available from Maven central. See the org.infinispan group for available Infinispan artifacts.

2.1. Configuring your project POM

Configure Project Object Model (POM) files in your project to use Infinispan dependencies for embedded caches, Hot Rod clients, and other capabilities.

Procedure

  1. Open your project pom.xml for editing.

  2. Define the version.infinispan property with the correct Infinispan version.

  3. Include the infinispan-bom in a dependencyManagement section.

    The Bill Of Materials (BOM) controls dependency versions, which avoids version conflicts and means you do not need to set the version for each Infinispan artifact you add as a dependency to your project.

  4. Save and close pom.xml.

The following example shows the Infinispan version and BOM:

<properties>
  <version.infinispan>15.1.1.Final</version.infinispan>
</properties>

<dependencyManagement>
  <dependencies>
    <dependency>
      <groupId>org.infinispan</groupId>
      <artifactId>infinispan-bom</artifactId>
      <version>${version.infinispan}</version>
      <type>pom</type>
      <scope>import</scope>
    </dependency>
  </dependencies>
</dependencyManagement>
Next Steps

Add Infinispan artifacts as dependencies to your pom.xml as required.

3. Hot Rod Java Client Configuration

Infinispan provides a Hot Rod Java client configuration API that exposes configuration properties.

3.1. Adding Hot Rod Java Client Dependencies

Add Hot Rod Java client dependencies to include it in your project.

Prerequisites

  • Java 17 or greater.

Procedure

  • Add the infinispan-client-hotrod artifact as a dependency in your pom.xml as follows:

<dependency>
  <groupId>org.infinispan</groupId>
  <artifactId>infinispan-client-hotrod</artifactId>
</dependency>
Reference

Infinispan Server Requirements

3.2. Configuring Hot Rod Client Connections

Configure Hot Rod Java client connections to Infinispan Server.

Procedure

  • Use the ConfigurationBuilder class to generate immutable configuration objects that you can pass to RemoteCacheManager or use a hotrod-client.properties file on the application classpath.

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.addServer()
         .host("127.0.0.1")
         .port(ConfigurationProperties.DEFAULT_HOTROD_PORT)
       .addServer()
         .host("192.0.2.0")
         .port(ConfigurationProperties.DEFAULT_HOTROD_PORT)
       .security().authentication()
         .username("username")
         .password("changeme")
         .realm("default")
         .saslMechanism("SCRAM-SHA-512");
RemoteCacheManager cacheManager = new RemoteCacheManager(builder.build());
hotrod-client.properties
infinispan.client.hotrod.server_list = 127.0.0.1:11222,192.0.2.0:11222
infinispan.client.hotrod.auth_username = username
infinispan.client.hotrod.auth_password = changeme
infinispan.client.hotrod.auth_realm = default
infinispan.client.hotrod.sasl_mechanism = SCRAM-SHA-512

Configuring Hot Rod URIs

You can also configure Hot Rod client connections with URIs as follows:

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.uri("hotrod://username:changeme@127.0.0.1:11222,192.0.2.0:11222?auth_realm=default&sasl_mechanism=SCRAM-SHA-512");
RemoteCacheManager cacheManager = new RemoteCacheManager(builder.build());
hotrod-client.properties
infinispan.client.hotrod.uri = hotrod://username:changeme@127.0.0.1:11222,192.0.2.0:11222?auth_realm=default&sasl_mechanism=SCRAM-SHA-512

Adding properties outside the classpath

If the hotrod-client.properties file is not on the application classpath then you need to specify the location, as in the following example:

ConfigurationBuilder builder = new ConfigurationBuilder();
Properties p = new Properties();
try(Reader r = new FileReader("/path/to/hotrod-client.properties")) {
   p.load(r);
   builder.withProperties(p);
}
RemoteCacheManager cacheManager = new RemoteCacheManager(builder.build());
Additional resources

3.2.1. Defining Infinispan Clusters in Client Configuration

Provide the locations of Infinispan clusters in Hot Rod client configuration.

Procedure

  • Provide at least one Infinispan cluster name along with a host name and port for at least one node with the ClusterConfigurationBuilder class.

    If you want to define a cluster as default, so that clients always attempt to connect to it first, then define a server list with the addServers("<host_name>:<port>; <host_name>:<port>") method.

Multiple cluster connections
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addCluster("siteA")
               .addClusterNode("hostA1", 11222)
               .addClusterNode("hostA2", 11222)
             .addCluster("siteB")
               .addClusterNodes("hostB1:11222; hostB2:11222");
RemoteCacheManager remoteCacheManager = new RemoteCacheManager(clientBuilder.build());
Default server list with a failover cluster
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServers("hostA1:11222; hostA2:11222")
             .addCluster("siteB")
               .addClusterNodes("hostB1:11222; hostB2:11223");
RemoteCacheManager remoteCacheManager = new RemoteCacheManager(clientBuilder.build());

3.2.2. Manually Switching Infinispan Clusters

Manually switch Hot Rod Java client connections between Infinispan clusters.

Procedure

  • Call one of the following methods in the RemoteCacheManager class:

    switchToCluster(clusterName) switches to a specific cluster defined in the client configuration.

    switchToDefaultCluster() switches to the default cluster in the client configuration, which is defined as a list of Infinispan servers.

Additional resources

3.3. Configuring Authentication Mechanisms for Hot Rod Clients

Infinispan Server uses different mechanisms to authenticate Hot Rod client connections.

Procedure

  • Specify authentication mechanisms with the saslMechanism() method from the AuthenticationConfigurationBuilder class or with the infinispan.client.hotrod.sasl_mechanism property.

SCRAM
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
                 .saslMechanism("SCRAM-SHA-512")
                 .username("myuser")
                 .password("qwer1234!");
DIGEST
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
                 .saslMechanism("DIGEST-MD5")
                 .username("myuser")
                 .password("qwer1234!");
PLAIN
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
                 .saslMechanism("PLAIN")
                 .username("myuser")
                 .password("qwer1234!");
OAUTHBEARER
String token = "..."; // Obtain the token from your OAuth2 provider
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
                 .saslMechanism("OAUTHBEARER")
                 .token(token);
EXTERNAL
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder
   .addServer()
      .host("127.0.0.1")
      .port(11222)
   .security()
      .ssl()
         // TrustStore stores trusted CA certificates for the server.
         .trustStoreFileName("/path/to/truststore")
         .trustStorePassword("truststorepassword".toCharArray())
         .trustStoreType("PCKS12")
         // KeyStore stores valid client certificates.
         .keyStoreFileName("/path/to/keystore")
         .keyStorePassword("keystorepassword".toCharArray())
         .keyStoreType("PCKS12")
      .authentication()
         .saslMechanism("EXTERNAL");
remoteCacheManager = new RemoteCacheManager(clientBuilder.build());
RemoteCache<String, String> cache = remoteCacheManager.getCache("secured");
GSSAPI
LoginContext lc = new LoginContext("GssExample", new BasicCallbackHandler("krb_user", "krb_password".toCharArray()));
lc.login();
Subject clientSubject = lc.getSubject();

ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
                 .saslMechanism("GSSAPI")
                 .clientSubject(clientSubject)
                 .callbackHandler(new BasicCallbackHandler());

Basic Callback Handler

The BasicCallbackHandler, as shown in the GSSAPI example, invokes the following callbacks:

  • NameCallback and PasswordCallback construct the client subject.

  • AuthorizeCallback is called during SASL authentication.

OAUTHBEARER with Token Callback Handler

Use a TokenCallbackHandler to refresh OAuth2 tokens before they expire, as in the following example:

String token = "..."; // Obtain the token from your OAuth2 provider
TokenCallbackHandler tokenHandler = new TokenCallbackHandler(token);
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security()
               .authentication()
               .saslMechanism("OAUTHBEARER")
               .callbackHandler(tokenHandler);
remoteCacheManager = new RemoteCacheManager(clientBuilder.build());
RemoteCache<String, String> cache = remoteCacheManager.getCache("secured");
// Refresh the token
tokenHandler.setToken("newToken");

Custom CallbackHandler

Hot Rod clients set up a default CallbackHandler to pass credentials to SASL mechanisms. In some cases you might need to provide a custom CallbackHandler, as in the following example:

public class MyCallbackHandler implements CallbackHandler {
   final private String username;
   final private char[] password;
   final private String realm;

   public MyCallbackHandler(String username, String realm, char[] password) {
      this.username = username;
      this.password = password;
      this.realm = realm;
   }

   @Override
   public void handle(Callback[] callbacks) throws IOException, UnsupportedCallbackException {
      for (Callback callback : callbacks) {
         if (callback instanceof NameCallback) {
            NameCallback nameCallback = (NameCallback) callback;
            nameCallback.setName(username);
         } else if (callback instanceof PasswordCallback) {
            PasswordCallback passwordCallback = (PasswordCallback) callback;
            passwordCallback.setPassword(password);
         } else if (callback instanceof AuthorizeCallback) {
            AuthorizeCallback authorizeCallback = (AuthorizeCallback) callback;
            authorizeCallback.setAuthorized(authorizeCallback.getAuthenticationID().equals(
                  authorizeCallback.getAuthorizationID()));
         } else if (callback instanceof RealmCallback) {
            RealmCallback realmCallback = (RealmCallback) callback;
            realmCallback.setText(realm);
         } else {
            throw new UnsupportedCallbackException(callback);
         }
      }
   }
}

ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .security().authentication()
               .serverName("myhotrodserver")
               .saslMechanism("DIGEST-MD5")
               .callbackHandler(new MyCallbackHandler("myuser","default","qwer1234!".toCharArray()));

A custom CallbackHandler needs to handle callbacks that are specific to the authentication mechanism that you use. However, it is beyond the scope of this document to provide examples for each possible callback type.

3.3.1. Creating GSSAPI Login Contexts

To use the GSSAPI mechanism, you must create a LoginContext so your Hot Rod client can obtain a Ticket Granting Ticket (TGT).

Procedure

  1. Define a login module in a login configuration file.

    gss.conf
    GssExample {
    com.sun.security.auth.module.Krb5LoginModule required client=TRUE;
};

    For the IBM JDK:

    gss-ibm.conf
    GssExample {
    com.ibm.security.auth.module.Krb5LoginModule required client=TRUE;
};

  2. Set the following system properties:

    java.security.auth.login.config=gss.conf

java.security.krb5.conf=/etc/krb5.conf

    krb5.conf provides the location of your KDC. Use the kinit command to authenticate with Kerberos and verify krb5.conf.

3.3.2. SASL authentication mechanisms

Infinispan Server supports the following SASL authentications mechanisms with Hot Rod and Memcached binary protocol endpoints:

Authentication mechanism Description Security realm type Related details

PLAIN

Uses credentials in plain-text format. You should use PLAIN authentication with encrypted connections only.

Property realms and LDAP realms

Similar to the BASIC HTTP mechanism.

DIGEST-*

Uses hashing algorithms and nonce values. Hot Rod connectors support DIGEST-MD5, DIGEST-SHA, DIGEST-SHA-256, DIGEST-SHA-384, and DIGEST-SHA-512 hashing algorithms, in order of strength.

Property realms and LDAP realms

Similar to the Digest HTTP mechanism.

SCRAM-*

Uses salt values in addition to hashing algorithms and nonce values. Hot Rod connectors support SCRAM-SHA, SCRAM-SHA-256, SCRAM-SHA-384, and SCRAM-SHA-512 hashing algorithms, in order of strength.

Property realms and LDAP realms

Similar to the Digest HTTP mechanism.

GSSAPI

Uses Kerberos tickets and requires a Kerberos Domain Controller. You must add a corresponding kerberos server identity in the realm configuration. In most cases, you also specify an ldap-realm to provide user membership information.

Kerberos realms

Similar to the SPNEGO HTTP mechanism.

GS2-KRB5

Uses Kerberos tickets and requires a Kerberos Domain Controller. You must add a corresponding kerberos server identity in the realm configuration. In most cases, you also specify an ldap-realm to provide user membership information.

Kerberos realms

Similar to the SPNEGO HTTP mechanism.

EXTERNAL

Uses client certificates.

Trust store realms

Similar to the CLIENT_CERT HTTP mechanism.

OAUTHBEARER

Uses OAuth tokens and requires a token-realm configuration.

Token realms

Similar to the BEARER_TOKEN HTTP mechanism.

3.4. Configuring Hot Rod client encryption

Infinispan Server can enforce SSL/TLS encryption and present Hot Rod clients with certificates to establish trust and negotiate secure connections.

To verify certificates issued to Infinispan Server, Hot Rod clients require either the full certificate chain or a partial chain that starts with the Root CA. You provide server certificates to Hot Rod clients as trust stores.

By default, Hot Rod clients will also perform hostname validation by matching the dNSName or iPAddress or both types contained by the server certificate’s subjectAltName extension with the expected hostname.

Alternatively to providing trust stores you can use shared system certificates.
Prerequisites

  • Create a trust store that Hot Rod clients can use to verify Infinispan Server identities.

  • If you configure Infinispan Server to validate or authenticate client certificates, create a keystore as appropriate.

Procedure

  1. Add the trust store to the client configuration with the trustStoreFileName() and trustStorePassword() methods or corresponding properties.

  2. If you configure client certificate authentication, do the following:

    1. Add the keystore to the client configuration with the keyStoreFileName() and keyStorePassword() methods or corresponding properties.

    2. Configure clients to use the EXTERNAL authentication mechanism.

ConfigurationBuilder
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder
   .addServer()
      .host("127.0.0.1")
      .port(11222)
   .security()
      .ssl()
         // Server SNI hostname.
         .sniHostName("myservername")
         // Keystore that contains the public keys for Infinispan Server.
         // Clients use the trust store to verify Infinispan Server identities.
         .trustStoreFileName("/path/to/server/truststore")
         .trustStorePassword("truststorepassword".toCharArray())
         .trustStoreType("PCKS12")
         // Keystore that contains client certificates.
         // Clients present these certificates to Infinispan Server.
         .keyStoreFileName("/path/to/client/keystore")
         .keyStorePassword("keystorepassword".toCharArray())
         .keyStoreType("PCKS12")
      .authentication()
         // Clients must use the EXTERNAL mechanism for certificate authentication.
         .saslMechanism("EXTERNAL");
hotrod-client.properties
infinispan.client.hotrod.server_list = 127.0.0.1:11222
infinispan.client.hotrod.use_ssl = true
# Use SNI for hostname validation
infinispan.client.hotrod.sni_host_name = myservername
# Keystore that contains the public keys for Infinispan Server.
# Clients use the trust store to verify Infinispan Server identities.
infinispan.client.hotrod.trust_store_file_name = server_truststore.pkcs12
infinispan.client.hotrod.trust_store_password = changeme
infinispan.client.hotrod.trust_store_type = PCKS12
# Keystore that contains client certificates.
# Clients present these certificates to Infinispan Server.
infinispan.client.hotrod.key_store_file_name = client_keystore.pkcs12
infinispan.client.hotrod.key_store_password = changeme
infinispan.client.hotrod.key_store_type = PCKS12
# Clients must use the EXTERNAL mechanism for certificate authentication.
infinispan.client.hotrod.sasl_mechanism = EXTERNAL
Next steps

Add a client trust store to the $ISPN_HOME/server/conf directory and configure Infinispan Server to use it, if necessary.

Additional resources

3.5. Enabling Hot Rod client statistics

Hot Rod Java clients can provide statistics that include remote cache and near-cache hits and misses.

Procedure

  1. Open your Hot Rod Java client configuration for editing.

  2. Set true as the value for the statistics property or invoke the statistics().enable() methods.

  3. Export JMX MBeans for your Hot Rod client with the jmx and jmx_domain properties or invoke the jmxEnable() and jmxDomain() methods.

  4. Save and close your client configuration.

Hot Rod Java client statistics

ConfigurationBuilder
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.statistics().enable()
         .jmxEnable()
         .jmxDomain("my.domain.org")
       .addServer()
         .host("127.0.0.1")
         .port(11222);
RemoteCacheManager remoteCacheManager = new RemoteCacheManager(builder.build());
hotrod-client.properties
infinispan.client.hotrod.statistics = true
infinispan.client.hotrod.jmx = true
infinispan.client.hotrod.jmx_domain = my.domain.org

3.6. Hot Rod client tracing propagation

When you configure OpenTelemetry tracing on both the client VM and the Infinispan Server, the Hot Rod client enables automatic correlation of tracing spans between the client application and the Infinispan Server.

Disabling tracing propagation from the client to the Infinispan Server

Prerequisites

  • Have OpenTelemetry tracing enabled on The Infinispan Server and the client side.

Procedure

  • Use the disableTracingPropagation() method to disable OpenTelemetry tracing propagation.

    import org.infinispan.client.hotrod.configuration.ConfigurationBuilder;

ConfigurationBuilder builder = new ConfigurationBuilder();
builder.addServer()
   .host("127.0.0.1")
   .port(ConfigurationProperties.DEFAULT_HOTROD_PORT)
   .disableTracingPropagation();

    The Hot Rod client stops sending tracing to the Infinispan Server.

Additional resources

3.7. Near Caches

Near caches are local to Hot Rod clients and store recently used data so that every read operation does not need to traverse the network, which significantly increases performance.

Near caches:

  • Are populated with read operations, calls to get() or getVersioned() methods.
    In the following example the put() call does not populate the near cache and only has the effect of invalidating the entry if it already exists:

    cache.put("k1", "v1");
cache.get("k1");

  • Register a client listener to invalidate entries when they are updated or removed in remote caches on Infinispan Server.
    If entries are requested after they are invalidated, clients must retrieve them from the remote caches again.

  • Are cleared when clients fail over to different servers.

Bounded near caches

You should always use bounded near caches by specifying the maximum number of entries they can contain. When near caches reach the maximum number of entries, eviction automatically takes place to remove older entries. This means you do not need to manually keep the cache size within the boundaries of the client JVM.

Do not use maximum idle expiration with near caches because near-cache reads do not propagate the last access time for entries.
Bloom filters

Bloom filters optimize performance for write operations by reducing the total number of invalidation messages.

Bloom filters:

  • Reside on Infinispan Server and keep track of the entries that the client has requested.

  • Cannot be used with unbounded near caches.

3.7.1. Configuring Near Caches

Configure Hot Rod Java clients with near caches to store recently used data locally in the client JVM.

Procedure

  1. Open your Hot Rod Java client configuration.

  2. Configure each cache to perform near caching with the nearCacheMode(NearCacheMode.INVALIDATED) method.

    Infinispan provides global near cache configuration properties. However, those properties are deprecated and you should not use them but configure near caching on a per-cache basis instead.

  3. Specify the maximum number of entries that the near cache can hold before eviction occurs with the nearCacheMaxEntries() method.

  4. Enable bloom filters for near caches with the nearCacheUseBloomFilter() method.

import org.infinispan.client.hotrod.configuration.ConfigurationBuilder;
import org.infinispan.client.hotrod.configuration.NearCacheMode;
import org.infinispan.client.hotrod.configuration.ExhaustedAction;

ConfigurationBuilder builder = new ConfigurationBuilder();
builder.addServer()
    .host("127.0.0.1")
    .port(ConfigurationProperties.DEFAULT_HOTROD_PORT)
  .security().authentication()
    .username("username")
    .password("password")
    .realm("default")
    .saslMechanism("SCRAM-SHA-512")
  // Configure the connection pool for bloom filters.
  .connectionPool()
    .maxActive(1)
    .exhaustedAction(ExhaustedAction.WAIT);
// Configure near caching for specific caches
builder.remoteCache("books")
    .nearCacheMode(NearCacheMode.INVALIDATED)
    .nearCacheMaxEntries(100)
    .nearCacheUseBloomFilter(false);
builder.remoteCache("authors")
    .nearCacheMode(NearCacheMode.INVALIDATED)
    .nearCacheMaxEntries(200)
    .nearCacheUseBloomFilter(true);
Additional resources

3.8. Forcing Return Values

To avoid sending data unnecessarily, write operations on remote caches return null instead of previous values.

For example, the following method calls do not return previous values for keys:

V remove(Object key);
V put(K key, V value);

You can, however, change the default behavior so your invocations return previous values for keys.

Procedure

  • Configure Hot Rod clients so method calls return previous values for keys in one of the following ways:

FORCE_RETURN_VALUE flag
cache.withFlags(Flag.FORCE_RETURN_VALUE).put("aKey", "newValue")
Per-cache
ConfigurationBuilder builder = new ConfigurationBuilder();
// Return previous values for keys for invocations for a specific cache.
builder.remoteCache("mycache")
       .forceReturnValues(true);
hotrod-client.properties
# Use the "*" wildcard in the cache name to return previous values
# for all caches that start with the "somecaches" string.

infinispan.client.hotrod.cache.somecaches*.force_return_values = true
Additional resources

3.9. Creating remote caches from Hot Rod clients

Use the Infinispan Hot Rod API to create remote caches on Infinispan Server from Java, C++, .NET/C#, JS clients and more.

This procedure shows you how to use Hot Rod Java clients that create remote caches on first access. You can find code examples for other Hot Rod clients in the Infinispan Tutorials.

Prerequisites

  • Create a Infinispan user with admin permissions.

  • Start at least one Infinispan Server instance.

  • Have a Infinispan cache configuration.

Procedure

  • Invoke the remoteCache() method as part of your the ConfigurationBuilder.

  • Set the configuration or configuration_uri properties in the hotrod-client.properties file on your classpath.

ConfigurationBuilder
File file = new File("path/to/infinispan.xml")
ConfigurationBuilder builder = new ConfigurationBuilder();
builder.remoteCache("another-cache")
       .configuration("<distributed-cache name=\"another-cache\"/>");
builder.remoteCache("my.other.cache")
       .configurationURI(file.toURI());
hotrod-client.properties
infinispan.client.hotrod.cache.another-cache.configuration=<distributed-cache name=\"another-cache\"/>
infinispan.client.hotrod.cache.[my.other.cache].configuration_uri=file:///path/to/infinispan.xml

If the name of your remote cache contains the . character, you must enclose it in square brackets when using hotrod-client.properties files.
Additional resources

3.10. Configuring Hot Rod Client metrics

Hot Rod Java clients collect and expose metrics related to the cache requests. Implement the SPI RemoteCacheManagerMetricsRegistry to register metrics in the collector of your choice. Infinispan provides an implementation using Micrometer.

You can configure generic implementation of Hot Rod client metrics or the provided Micrometer implementation as shown in the following examples.

Procedure

  • Configure a generic implementation.

    ConfigurationBuilder
    RemoteCacheManagerMetricsRegistry registry = ...;
ConfigurationBuilder clientBuilder = new ConfigurationBuilder();
clientBuilder.addServer()
               .host("127.0.0.1")
               .port(11222)
             .withMetricRegistry(registry);
RemoteCacheManager remoteCacheManager = new RemoteCacheManager(clientBuilder.build());

  • Configure the Micrometer implementation.

    Infinispan provides a Micrometer implementation to collect the metrics. This implementation has some configuration options used by Micrometer.

    ConfigurationBuilder
    ConfigurationBuilder clientBuilder = ...; (1)
MeterRegistry registry = ...; (2)
MicrometerRemoteCacheManagerMetricsRegistry.Builder metricsBuilder = new MicrometerRemoteCacheManagerMetricsRegistry.Builder(registry) (3)
   .withHistograms(histograms) (4)
   .withPrefix(prefix) (5)
   .withTag("my-tag", "my-value"); (6)
HotRodMetricRegistry registry = metricsBuilder.build();
clientBuilder.withMetricRegistry(registry);
    1 The Hot Rod client configuration builder.
    2 The Micrometer MeterRegistry implementation used by the application.
    3 Set the MeterRegistry implementation in the Builder constructor. Must be non-null.
    4 Enables histograms. Micrometer will expose the histogram percentiles when enabled.
    5 Metrics name are in the format vendor.<prefix>.<name>. The <prefix> is configured here and, by default, is client.hotrod.
    6 Adds Micrometer tags to all metrics (for example, an application ID).

    Histograms can affect resources consumption and may degrade performance.

4. Hot Rod Client API

Infinispan Hot Rod client API provides interfaces for creating caches remotely, manipulating data, monitoring the topology of clustered caches, and more.

4.1. RemoteCache API

The collection methods keySet, entrySet and values are backed by the remote cache. That is that every method is called back into the RemoteCache. This is useful as it allows for the various keys, entries or values to be retrieved lazily, and not requiring them all be stored in the client memory at once if the user does not want.

These collections adhere to the Map specification being that add and addAll are not supported but all other methods are supported.

One thing to note is the Iterator.remove and Set.remove or Collection.remove methods require more than 1 round trip to the server to operate. You can check out the RemoteCache Javadoc to see more details about these and the other methods.

Iterator Usage

The iterator method of these collections uses retrieveEntries internally, which is described below. If you notice retrieveEntries takes an argument for the batch size. There is no way to provide this to the iterator. As such the batch size can be configured via system property infinispan.client.hotrod.batch_size or through the ConfigurationBuilder when configuring the RemoteCacheManager.

Also the retrieveEntries iterator returned is Closeable as such the iterators from keySet, entrySet and values return an AutoCloseable variant. Therefore you should always close these `Iterator`s when you are done with them.

try (CloseableIterator<Map.Entry<K, V>> iterator = remoteCache.entrySet().iterator()) {

      }

What if I want a deep copy and not a backing collection?

Previous version of RemoteCache allowed for the retrieval of a deep copy of the keySet. This is still possible with the new backing map, you just have to copy the contents yourself. Also you can do this with entrySet and values, which we didn’t support before.

Set<K> keysCopy = remoteCache.keySet().stream().collect(Collectors.toSet());

4.1.1. Unsupported Methods

The Infinispan RemoteCache API does not support all methods available in the Cache API and throws UnsupportedOperationException when unsupported methods are invoked.

Most of these methods do not make sense on the remote cache (e.g. listener management operations), or correspond to methods that are not supported by local cache as well (e.g. containsValue).

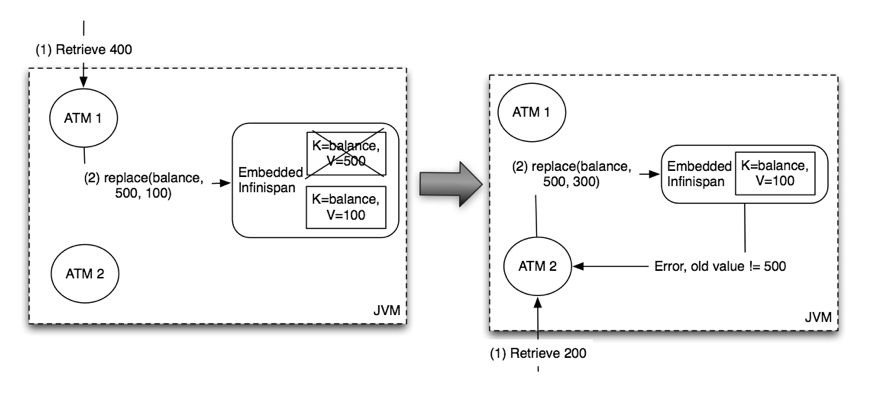

Certain atomic operations inherited from ConcurrentMap are also not supported with the RemoteCache API, for example:

boolean remove(Object key, Object value);
boolean replace(Object key, Object value);
boolean replace(Object key, Object oldValue, Object value);

However, RemoteCache offers alternative versioned methods for these atomic operations that send version identifiers over the network instead of whole value objects.

Reference

4.2. Remote Iterator API

Infinispan provides a remote iterator API to retrieve entries where memory resources are constrained or if you plan to do server-side filtering or conversion.

// Retrieve all entries in batches of 1000
int batchSize = 1000;
try (CloseableIterator<Entry<Object, Object>> iterator = remoteCache.retrieveEntries(null, batchSize)) {
     while(iterator.hasNext()) {
        // Do something
     }
}

// Filter by segment
Set<Integer> segments = ...
try (CloseableIterator<Entry<Object, Object>> iterator = remoteCache.retrieveEntries(null, segments, batchSize)) {
     while(iterator.hasNext()) {
        // Do something
     }
}

// Filter by custom filter
try (CloseableIterator<Entry<Object, Object>> iterator = remoteCache.retrieveEntries("myFilterConverterFactory", segments, batchSize)) {
     while(iterator.hasNext()) {
        // Do something
     }
}

4.2.1. Deploying Custom Filters to Infinispan Server

Deploy custom filters to Infinispan server instances.

Procedure

  1. Create a factory that extends KeyValueFilterConverterFactory.

    import java.io.Serializable;

import org.infinispan.filter.AbstractKeyValueFilterConverter;
import org.infinispan.filter.KeyValueFilterConverter;
import org.infinispan.filter.KeyValueFilterConverterFactory;
import org.infinispan.filter.NamedFactory;
import org.infinispan.metadata.Metadata;

//@NamedFactory annotation defines the factory name
@NamedFactory(name = "myFilterConverterFactory")
public class MyKeyValueFilterConverterFactory implements KeyValueFilterConverterFactory {

   @Override
   public KeyValueFilterConverter<String, SampleEntity1, SampleEntity2> getFilterConverter() {
      return new MyKeyValueFilterConverter();
   }
   // Filter implementation. Should be serializable or externalizable for DIST caches
   static class MyKeyValueFilterConverter extends AbstractKeyValueFilterConverter<String, SampleEntity1, SampleEntity2> implements Serializable {
      @Override
      public SampleEntity2 filterAndConvert(String key, SampleEntity1 entity, Metadata metadata) {
         // returning null will case the entry to be filtered out
         // return SampleEntity2 will convert from the cache type SampleEntity1
      }

      @Override
      public MediaType format() {
         // returns the MediaType that data should be presented to this converter.
         // When omitted, the server will use "application/x-java-object".
         // Returning null will cause the filter/converter to be done in the storage format.
      }
   }
}

  2. Create a JAR that contains a META-INF/services/org.infinispan.filter.KeyValueFilterConverterFactory file. This file should include the fully qualified class name of the filter factory class implementation.

    If the filter uses custom key/value classes, you must include them in your JAR file so that the filter can correctly unmarshall key and/or value instances.

  3. Add the JAR file to the server/lib directory of your Infinispan server installation directory.

Reference

4.3. MetadataValue API

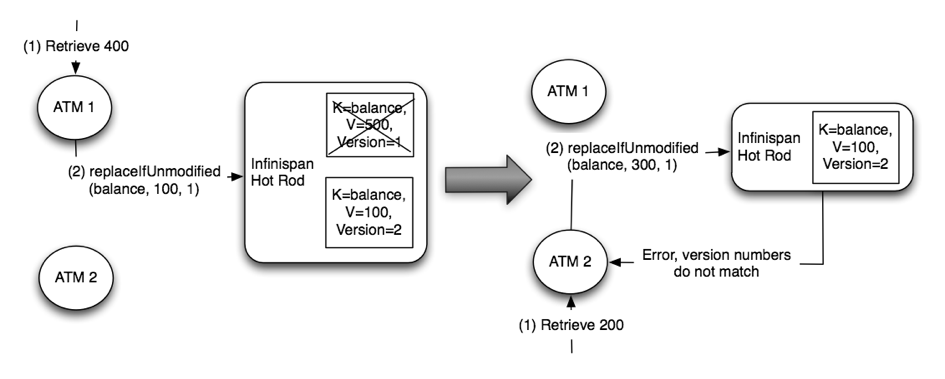

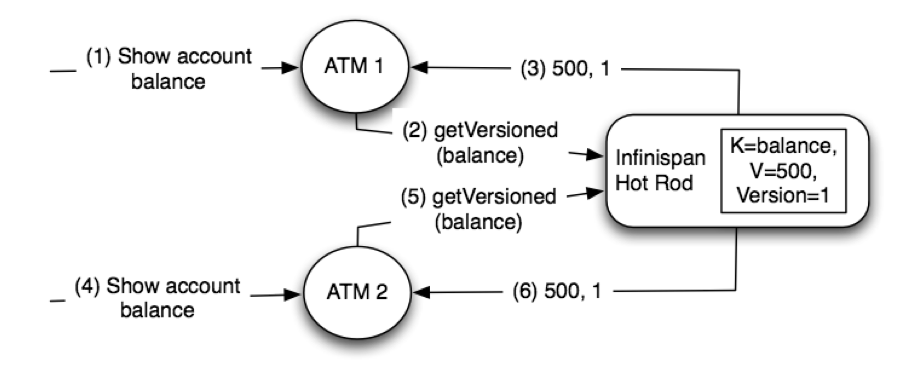

Use the MetadataValue interface for versioned operations.

The following example shows a remove operation that occurs only if the version of the value for the entry is unchanged:

RemoteCacheManager remoteCacheManager = new RemoteCacheManager();
      RemoteCache<String, String> remoteCache = remoteCacheManager.getCache();

      remoteCache.put("car", "ferrari");
      VersionedValue valueBinary = remoteCache.getWithMetadata("car");

      assert remoteCache.remove("car", valueBinary.getVersion());
      assert !remoteCache.containsKey("car");
Reference

4.4. Streaming API

Infinispan provides a Streaming API that implements methods that return instances of InputStream and OutputStream so you can stream large objects between Hot Rod clients and Infinispan servers.

Consider the following example of a large object:

StreamingRemoteCache<String> streamingCache = remoteCache.streaming();
OutputStream os = streamingCache.put("a_large_object");
os.write(...);
os.close();

You could read the object through streaming as follows:

StreamingRemoteCache<String> streamingCache = remoteCache.streaming();
InputStream is = streamingCache.get("a_large_object");
for(int b = is.read(); b >= 0; b = is.read()) {
   // iterate
}
is.close();

The Streaming API does not marshall values, which means you cannot access the same entries using both the Streaming and Non-Streaming API at the same time. You can, however, implement a custom marshaller to handle this case.

The InputStream returned by the RemoteStreamingCache.get(K key) method implements the VersionedMetadata interface, so you can retrieve version and expiration information as follows:

StreamingRemoteCache<String> streamingCache = remoteCache.streaming();
InputStream is = streamingCache.get("a_large_object");
long version = ((VersionedMetadata) is).getVersion();
for(int b = is.read(); b >= 0; b = is.read()) {
   // iterate
}
is.close();

Conditional write methods (putIfAbsent(), replace()) perform the actual condition check after the value is completely sent to the server. In other words, when the close() method is invoked on the OutputStream.
Reference

4.5. Counter API

The CounterManager interface is the entry point to define, retrieve and remove counters.

Hot Rod clients can retrieve the CounterManager interface as in the following example:

// create or obtain your RemoteCacheManager
RemoteCacheManager manager = ...;

// retrieve the CounterManager
CounterManager counterManager = RemoteCounterManagerFactory.asCounterManager(manager);

4.6. Creating Event Listeners

Java Hot Rod clients can register listeners to receive cache-entry level events. Cache entry created, modified and removed events are supported.

Creating a client listener is very similar to embedded listeners, except that different annotations and event classes are used. Here’s an example of a client listener that prints out each event received:

import org.infinispan.client.hotrod.annotation.*;
import org.infinispan.client.hotrod.event.*;

@ClientListener(converterFactoryName = "static-converter")
public class EventPrintListener {

   @ClientCacheEntryCreated
   public void handleCreatedEvent(ClientCacheEntryCreatedEvent e) {
      System.out.println(e);
   }

   @ClientCacheEntryModified
   public void handleModifiedEvent(ClientCacheEntryModifiedEvent e) {
      System.out.println(e);
   }

   @ClientCacheEntryRemoved
   public void handleRemovedEvent(ClientCacheEntryRemovedEvent e) {
      System.out.println(e);
   }

}

ClientCacheEntryCreatedEvent and ClientCacheEntryModifiedEvent instances provide information on the affected key, and the version of the entry. This version can be used to invoke conditional operations on the server, such as replaceWithVersion or removeWithVersion.

ClientCacheEntryRemovedEvent events are only sent when the remove operation succeeds. In other words, if a remove operation is invoked but no entry is found or no entry should be removed, no event is generated. Users interested in removed events, even when no entry was removed, can develop event customization logic to generate such events. More information can be found in the customizing client events section.

All ClientCacheEntryCreatedEvent, ClientCacheEntryModifiedEvent and ClientCacheEntryRemovedEvent event instances also provide a boolean isCommandRetried() method that will return true if the write command that caused this had to be retried again due to a topology change. This could be a sign that this event has been duplicated or another event was dropped and replaced (eg: ClientCacheEntryModifiedEvent replaced ClientCacheEntryCreatedEvent).

Once the client listener implementation has been created, it needs to be registered with the server. To do so, execute:

RemoteCache<?, ?> cache = ...
cache.addClientListener(new EventPrintListener());

4.6.1. Removing Event Listeners

When an client event listener is not needed any more, it can be removed:

EventPrintListener listener = ...
cache.removeClientListener(listener);

4.6.2. Filtering Events

In order to avoid inundating clients with events, users can provide filtering functionality to limit the number of events fired by the server for a particular client listener. To enable filtering, a cache event filter factory needs to be created that produces filter instances:

import org.infinispan.notifications.cachelistener.filter.CacheEventFilterFactory;
import org.infinispan.filter.NamedFactory;

@NamedFactory(name = "static-filter")
public static class StaticCacheEventFilterFactory implements CacheEventFilterFactory {

   @Override
   public StaticCacheEventFilter getFilter(Object[] params) {
      return new StaticCacheEventFilter();
   }
}


// Serializable, Externalizable or marshallable with Infinispan Externalizers
// needed when running in a cluster
class StaticCacheEventFilter implements CacheEventFilter<Integer, String>, Serializable {
   @Override
   public boolean accept(Integer key, String oldValue, Metadata oldMetadata,
         String newValue, Metadata newMetadata, EventType eventType) {
      if (key.equals(1)) // static key
         return true;

      return false;
   }
}

The cache event filter factory instance defined above creates filter instances which statically filter out all entries except the one whose key is 1.

To be able to register a listener with this cache event filter factory, the factory has to be given a unique name, and the Hot Rod server needs to be plugged with the name and the cache event filter factory instance.

  1. Create a JAR file that contains the filter implementation.

    If the cache uses custom key/value classes, these must be included in the JAR so that the callbacks can be executed with the correctly unmarshalled key and/or value instances. If the client listener has useRawData enabled, this is not necessary since the callback key/value instances will be provided in binary format.

  2. Create a META-INF/services/org.infinispan.notifications.cachelistener.filter.CacheEventFilterFactory file within the JAR file and within it, write the fully qualified class name of the filter class implementation.

  3. Add the JAR file to the server/lib directory of your Infinispan server installation directory.

  4. Link the client listener with this cache event filter factory by adding the factory name to the @ClientListener annotation:

    @ClientListener(filterFactoryName = "static-filter")
public class EventPrintListener { ... }

  5. Register the listener with the server:

    RemoteCache<?, ?> cache = ...
cache.addClientListener(new EventPrintListener());

You can also register dynamic filter instances that filter based on parameters provided when the listener is registered are also possible. Filters use the parameters received by the filter factories to enable this option, for example:

import org.infinispan.notifications.cachelistener.filter.CacheEventFilterFactory;
import org.infinispan.notifications.cachelistener.filter.CacheEventFilter;

class DynamicCacheEventFilterFactory implements CacheEventFilterFactory {
   @Override
   public CacheEventFilter<Integer, String> getFilter(Object[] params) {
      return new DynamicCacheEventFilter(params);
   }
}

// Serializable, Externalizable or marshallable with Infinispan Externalizers
// needed when running in a cluster
class DynamicCacheEventFilter implements CacheEventFilter<Integer, String>, Serializable {
   final Object[] params;

   DynamicCacheEventFilter(Object[] params) {
      this.params = params;
   }

   @Override
   public boolean accept(Integer key, String oldValue, Metadata oldMetadata,
         String newValue, Metadata newMetadata, EventType eventType) {
      if (key.equals(params[0])) // dynamic key
         return true;

      return false;
   }
}

The dynamic parameters required to do the filtering are provided when the listener is registered:

RemoteCache<?, ?> cache = ...
cache.addClientListener(new EventPrintListener(), new Object[]{1}, null);
Filter instances have to marshallable when they are deployed in a cluster so that the filtering can happen right where the event is generated, even if the even is generated in a different node to where the listener is registered. To make them marshallable, either make them extend Serializable, Externalizable, or provide a custom Externalizer for them.

4.6.3. Skipping Notifications

Include the SKIP_LISTENER_NOTIFICATION flag when calling remote API methods to perform operations without getting event notifications from the server. For example, to prevent listener notifications when creating or modifying values, set the flag as follows:

remoteCache.withFlags(Flag.SKIP_LISTENER_NOTIFICATION).put(1, "one");

4.6.4. Customizing Events

The events generated by default contain just enough information to make the event relevant but they avoid cramming too much information in order to reduce the cost of sending them. Optionally, the information shipped in the events can be customised in order to contain more information, such as values, or to contain even less information. This customization is done with CacheEventConverter instances generated by a CacheEventConverterFactory:

import org.infinispan.notifications.cachelistener.filter.CacheEventConverterFactory;
import org.infinispan.notifications.cachelistener.filter.CacheEventConverter;
import org.infinispan.filter.NamedFactory;

@NamedFactory(name = "static-converter")
class StaticConverterFactory implements CacheEventConverterFactory {
   final CacheEventConverter<Integer, String, CustomEvent> staticConverter = new StaticCacheEventConverter();
   public CacheEventConverter<Integer, String, CustomEvent> getConverter(final Object[] params) {
      return staticConverter;
   }
}

// Serializable, Externalizable or marshallable with Infinispan Externalizers
// needed when running in a cluster
class StaticCacheEventConverter implements CacheEventConverter<Integer, String, CustomEvent>, Serializable {
   public CustomEvent convert(Integer key, String oldValue, Metadata oldMetadata, String newValue, Metadata newMetadata, EventType eventType) {
      return new CustomEvent(key, newValue);
   }
}

// Needs to be Serializable, Externalizable or marshallable with Infinispan Externalizers
// regardless of cluster or local caches
static class CustomEvent implements Serializable {
   final Integer key;
   final String value;
   CustomEvent(Integer key, String value) {
      this.key = key;
      this.value = value;
   }
}

In the example above, the converter generates a new custom event which includes the value as well as the key in the event. This will result in bigger event payloads compared with default events, but if combined with filtering, it can reduce its network bandwidth cost.

The target type of the converter must be either Serializable or Externalizable. In this particular case of converters, providing an Externalizer will not work by default since the default Hot Rod client marshaller does not support them.

Handling custom events requires a slightly different client listener implementation to the one demonstrated previously. To be more precise, it needs to handle ClientCacheEntryCustomEvent instances:

import org.infinispan.client.hotrod.annotation.*;
import org.infinispan.client.hotrod.event.*;

@ClientListener
public class CustomEventPrintListener {

   @ClientCacheEntryCreated
   @ClientCacheEntryModified
   @ClientCacheEntryRemoved
   public void handleCustomEvent(ClientCacheEntryCustomEvent<CustomEvent> e) {
      System.out.println(e);
   }

}

The ClientCacheEntryCustomEvent received in the callback exposes the custom event via getEventData method, and the getType method provides information on whether the event generated was as a result of cache entry creation, modification or removal.

Similar to filtering, to be able to register a listener with this converter factory, the factory has to be given a unique name, and the Hot Rod server needs to be plugged with the name and the cache event converter factory instance.

  1. Create a JAR file with the converter implementation within it.

    If the cache uses custom key/value classes, these must be included in the JAR so that the callbacks can be executed with the correctly unmarshalled key and/or value instances. If the client listener has useRawData enabled, this is not necessary since the callback key/value instances will be provided in binary format.

  2. Create a META-INF/services/org.infinispan.notifications.cachelistener.filter.CacheEventConverterFactory file within the JAR file and within it, write the fully qualified class name of the converter class implementation.

  3. Add the JAR file to the server/lib directory of your Infinispan server installation directory.

  4. Link the client listener with this converter factory by adding the factory name to the @ClientListener annotation:

    @ClientListener(converterFactoryName = "static-converter")
public class CustomEventPrintListener { ... }

  5. Register the listener with the server:

    RemoteCache<?, ?> cache = ...
cache.addClientListener(new CustomEventPrintListener());

Dynamic converter instances that convert based on parameters provided when the listener is registered are also possible. Converters use the parameters received by the converter factories to enable this option. For example:

import org.infinispan.notifications.cachelistener.filter.CacheEventConverterFactory;
import org.infinispan.notifications.cachelistener.filter.CacheEventConverter;

@NamedFactory(name = "dynamic-converter")
class DynamicCacheEventConverterFactory implements CacheEventConverterFactory {
   public CacheEventConverter<Integer, String, CustomEvent> getConverter(final Object[] params) {
      return new DynamicCacheEventConverter(params);
   }
}

// Serializable, Externalizable or marshallable with Infinispan Externalizers needed when running in a cluster
class DynamicCacheEventConverter implements CacheEventConverter<Integer, String, CustomEvent>, Serializable {
   final Object[] params;

   DynamicCacheEventConverter(Object[] params) {
      this.params = params;
   }

   public CustomEvent convert(Integer key, String oldValue, Metadata oldMetadata,
         String newValue, Metadata newMetadata, EventType eventType) {
      // If the key matches a key given via parameter, only send the key information
      if (params[0].equals(key))
         return new CustomEvent(key, null);

      return new CustomEvent(key, newValue);
   }
}

The dynamic parameters required to do the conversion are provided when the listener is registered:

RemoteCache<?, ?> cache = ...
cache.addClientListener(new EventPrintListener(), null, new Object[]{1});
Converter instances have to marshallable when they are deployed in a cluster, so that the conversion can happen right where the event is generated, even if the event is generated in a different node to where the listener is registered. To make them marshallable, either make them extend Serializable, Externalizable, or provide a custom Externalizer for them.

4.6.5. Filter and Custom Events

If you want to do both event filtering and customization, it’s easier to implement org.infinispan.notifications.cachelistener.filter.CacheEventFilterConverter which allows both filter and customization to happen in a single step. For convenience, it’s recommended to extend org.infinispan.notifications.cachelistener.filter.AbstractCacheEventFilterConverter instead of implementing org.infinispan.notifications.cachelistener.filter.CacheEventFilterConverter directly. For example:

import org.infinispan.notifications.cachelistener.filter.CacheEventConverterFactory;
import org.infinispan.notifications.cachelistener.filter.CacheEventConverter;

@NamedFactory(name = "dynamic-filter-converter")
class DynamicCacheEventFilterConverterFactory implements CacheEventFilterConverterFactory {
   public CacheEventFilterConverter<Integer, String, CustomEvent> getFilterConverter(final Object[] params) {
      return new DynamicCacheEventFilterConverter(params);
   }
}

// Serializable, Externalizable or marshallable with Infinispan Externalizers needed when running in a cluster
//
class DynamicCacheEventFilterConverter extends AbstractCacheEventFilterConverter<Integer, String, CustomEvent>, Serializable {
   final Object[] params;

   DynamicCacheEventFilterConverter(Object[] params) {
      this.params = params;
   }

   public CustomEvent filterAndConvert(Integer key, String oldValue, Metadata oldMetadata,
         String newValue, Metadata newMetadata, EventType eventType) {
      // If the key matches a key given via parameter, only send the key information
      if (params[0].equals(key))
         return new CustomEvent(key, null);

      return new CustomEvent(key, newValue);
   }
}

Similar to filters and converters, to be able to register a listener with this combined filter/converter factory, the factory has to be given a unique name via the @NamedFactory annotation, and the Hot Rod server needs to be plugged with the name and the cache event converter factory instance.

  1. Create a JAR file with the converter implementation within it.

    If the cache uses custom key/value classes, these must be included in the JAR so that the callbacks can be executed with the correctly unmarshalled key and/or value instances. If the client listener has useRawData enabled, this is not necessary since the callback key/value instances will be provided in binary format.

  2. Create a META-INF/services/org.infinispan.notifications.cachelistener.filter.CacheEventFilterConverterFactory file within the JAR file and within it, write the fully qualified class name of the converter class implementation.

  3. Add the JAR file to the server/lib directory of your Infinispan server installation directory.

From a client perspective, to be able to use the combined filter and converter class, the client listener must define the same filter factory and converter factory names, e.g.:

@ClientListener(filterFactoryName = "dynamic-filter-converter", converterFactoryName = "dynamic-filter-converter")
public class CustomEventPrintListener { ... }

The dynamic parameters required in the example above are provided when the listener is registered via either filter or converter parameters. If filter parameters are non-empty, those are used, otherwise, the converter parameters:

RemoteCache<?, ?> cache = ...
cache.addClientListener(new CustomEventPrintListener(), new Object[]{1}, null);

4.6.6. Event Marshalling

Hot Rod servers can store data in different formats, but in spite of that, Java Hot Rod client users can still develop CacheEventConverter or CacheEventFilter instances that work on typed objects. By default, filters and converter will use data as POJO (application/x-java-object) but it is possible to override the desired format by overriding the method format() from the filter/converter. If the format returns null, the filter/converter will receive data as it’s stored.

Hot Rod Java clients can be configured to use different org.infinispan.commons.marshall.Marshaller instances. If doing this and deploying CacheEventConverter or CacheEventFilter instances, to be able to present filters/converter with Java Objects rather than marshalled content, the server needs to be able to convert between objects and the binary format produced by the marshaller.

To deploy a Marshaller instance server-side, follow a similar method to the one used to deploy CacheEventConverter or CacheEventFilter instances:

  1. Create a JAR file with the converter implementation within it.

  2. Create a META-INF/services/org.infinispan.commons.marshall.Marshaller file within the JAR file and within it, write the fully qualified class name of the marshaller class implementation.

  3. Add the JAR file to the server/lib directory of your Infinispan server installation directory.

Note that the Marshaller could be deployed in either a separate jar, or in the same jar as the CacheEventConverter and/or CacheEventFilter instances.

Deploying Protostream Marshallers

If a cache stores Protobuf content, as it happens when using ProtoStream marshaller in the Hot Rod client, it’s not necessary to deploy a custom marshaller since the format is already support by the server: there are transcoders from Protobuf format to most common formats like JSON and POJO.

When using filters/converters with those caches, and it’s desirable to use filter/converters with Java Objects rather binary Protobuf data, it’s necessary to configure the extra ProtoStream marshallers so that the server can unmarshall the data before filtering/converting. To do so, you must configure the required SerializationContextInitializer(s) as part of the Infinispan server configuration.

See Cache Encoding and Marshalling for more information.

4.6.7. Listener State Handling

Client listener annotation has an optional includeCurrentState attribute that specifies whether state will be sent to the client when the listener is added or when there’s a failover of the listener.

By default, includeCurrentState is false, but if set to true and a client listener is added in a cache already containing data, the server iterates over the cache contents and sends an event for each entry to the client as a ClientCacheEntryCreated (or custom event if configured). This allows clients to build some local data structures based on the existing content. Once the content has been iterated over, events are received as normal, as cache updates are received. If the cache is clustered, the entire cluster wide contents are iterated over.

4.6.8. Listener Failure Handling

When a Hot Rod client registers a client listener, it does so in a single node in a cluster. If that node fails, the Java Hot Rod client detects that transparently and fails over all listeners registered in the node that failed to another node.

During this fail over the client might miss some events. To avoid missing these events, the client listener annotation contains an optional parameter called includeCurrentState which if set to true, when the failover happens, the cache contents can iterated over and ClientCacheEntryCreated events (or custom events if configured) are generated. By default, includeCurrentState is set to false.

Use callbacks to handle failover events:

@ClientCacheFailover
public void handleFailover(ClientCacheFailoverEvent e) {
  ...
}

This is very useful in use cases where the client has cached some data, and as a result of the fail over, taking in account that some events could be missed, it could decide to clear any locally cached data when the fail over event is received, with the knowledge that after the fail over event, it will receive events for the contents of the entire cache.

4.7. Hot Rod Java Client Transactions

You can configure and use Hot Rod clients in JTA Transactions.

To participate in a transaction, the Hot Rod client requires the TransactionManager with which it interacts and whether it participates in the transaction through the Synchronization or XAResource interface.

Transactions are optimistic in that clients acquire write locks on entries during the prepare phase. To avoid data inconsistency, be sure to read about Detecting Conflicts with Transactions.

4.7.1. Configuring the Server

Caches in the server must also be transactional for clients to participate in JTA Transactions.

The following server configuration is required, otherwise transactions rollback only:

  • Isolation level must be REPEATABLE_READ.

  • PESSIMISTIC locking mode is recommended but OPTIMISTIC can be used.

  • Transaction mode should be NON_XA or NON_DURABLE_XA. Hot Rod transactions should not use FULL_XA because it degrades performance.

For example:

<replicated-cache name="hotrodReplTx">
  <locking isolation="REPEATABLE_READ"/>
  <transaction mode="NON_XA" locking="PESSIMISTIC"/>
</replicated-cache>

Hot Rod transactions have their own recovery mechanism.

4.7.2. Configuring Hot Rod Clients

Transactional RemoteCache are configured per-cache basis. The exception is the transaction’s timeout which is global, because a single transaction can interact with multiple RemoteCaches.

Embedded Infinispan supports pessimistic locks but Hot Rod clients do not. Therefore, the transaction result obtained from using pessimistic locks in Infinispan server might differ from the result obtained from Hot Rod client.

The following example shows how to configure a transactional RemoteCache for cache my-cache:

org.infinispan.client.hotrod.configuration.ConfigurationBuilder cb = new org.infinispan.client.hotrod.configuration.ConfigurationBuilder();
//other client configuration parameters
cb.transactionTimeout(1, TimeUnit.MINUTES);
cb.remoteCache("my-cache")
   .transactionManagerLookup(GenericTransactionManagerLookup.getInstance())
   .transactionMode(TransactionMode.NON_XA);

See ConfigurationBuilder and RemoteCacheConfigurationBuilder Javadoc for documentation on configuration parameters.

You can also configure the Java Hot Rod client with a properties file, as in the following example:

infinispan.client.hotrod.cache.my-cache.transaction.transaction_manager_lookup = org.infinispan.client.hotrod.transaction.lookup.GenericTransactionManagerLookup
infinispan.client.hotrod.cache.my-cache.transaction.transaction_mode = NON_XA
infinispan.client.hotrod.transaction.timeout = 60000
TransactionManagerLookup Interface

TransactionManagerLookup provides an entry point to fetch a TransactionManager.

Available implementations of TransactionManagerLookup:

GenericTransactionManagerLookup

A lookup class that locates TransactionManagers running in Java EE application servers. Defaults to the RemoteTransactionManager if it cannot find a TransactionManager. This is the default for Hot Rod Java clients.

In most cases, GenericTransactionManagerLookup is suitable. However, you can implement the TransactionManagerLookup interface if you need to integrate a custom TransactionManager.
RemoteTransactionManagerLookup

A basic, and volatile, TransactionManager if no other implementation is available. Note that this implementation has significant limitations when handling concurrent transactions and recovery.

4.7.3. Transaction Modes

TransactionMode controls how a RemoteCache interacts with the TransactionManager.

Configure transaction modes on both the Infinispan server and your client application. If clients attempt to perform transactional operations on non-transactional caches, runtime exceptions can occur.

Transaction modes are the same in both the Infinispan configuration and client settings. Use the following modes with your client, see the Infinispan configuration schema for the server:

NONE

The RemoteCache does not interact with the TransactionManager. This is the default mode and is non-transactional.

NON_XA

The RemoteCache interacts with the TransactionManager via Synchronization.

NON_DURABLE_XA

The RemoteCache interacts with the TransactionManager via XAResource. Recovery capabilities are disabled.

FULL_XA

The RemoteCache interacts with the TransactionManager via XAResource. Recovery capabilities are enabled. Invoke the XaResource.recover() method to retrieve transactions to recover.

4.7.4. Detecting Conflicts with Transactions

Transactions use the initial values of keys to detect conflicts.

For example, "k" has a value of "v" when a transaction begins. During the prepare phase, the transaction fetches "k" from the server to read the value. If the value has changed, the transaction rolls back to avoid a conflict.

Transactions use versions to detect changes instead of checking value equality.

The forceReturnValue parameter controls write operations to the RemoteCache and helps avoid conflicts. It has the following values:

  • If true, the TransactionManager fetches the most recent value from the server before performing write operations. However, the forceReturnValue parameter applies only to write operations that access the key for the first time.

  • If false, the TransactionManager does not fetch the most recent value from the server before performing write operations.

This parameter does not affect conditional write operations such as replace or putIfAbsent because they require the most recent value.

The following transactions provide an example where the forceReturnValue parameter can prevent conflicting write operations:

Transaction 1 (TX1)
RemoteCache<String, String> cache = ...
TransactionManager tm = ...

tm.begin();
cache.put("k", "v1");
tm.commit();
Transaction 2 (TX2)
RemoteCache<String, String> cache = ...
TransactionManager tm = ...

tm.begin();
cache.put("k", "v2");
tm.commit();

In this example, TX1 and TX2 are executed in parallel. The initial value of "k" is "v".

  • If forceReturnValue = true, the cache.put() operation fetches the value for "k" from the server in both TX1 and TX2. The transaction that acquires the lock for "k" first then commits. The other transaction rolls back during the commit phase because the transaction can detect that "k" has a value other than "v".

  • If forceReturnValue = false, the cache.put() operation does not fetch the value for "k" from the server and returns null. Both TX1 and TX2 can successfully commit, which results in a conflict. This occurs because neither transaction can detect that the initial value of "k" changed.

The following transactions include cache.get() operations to read the value for "k" before doing the cache.put() operations:

Transaction 1 (TX1)
RemoteCache<String, String> cache = ...
TransactionManager tm = ...

tm.begin();
cache.get("k");
cache.put("k", "v1");
tm.commit();
Transaction 2 (TX2)
RemoteCache<String, String> cache = ...
TransactionManager tm = ...

tm.begin();
cache.get("k");
cache.put("k", "v2");
tm.commit();

In the preceding examples, TX1 and TX2 both read the key so the forceReturnValue parameter does not take effect. One transaction commits, the other rolls back. However, the cache.get() operation requires an additional server request. If you do not need the return value for the cache.put() operation that server request is inefficient.

4.7.5. Using the Configured Transaction Manager and Transaction Mode

The following example shows how to use the TransactionManager and TransactionMode that you configure in the RemoteCacheManager:

//Configure the transaction manager and transaction mode.
org.infinispan.client.hotrod.configuration.ConfigurationBuilder cb = new org.infinispan.client.hotrod.configuration.ConfigurationBuilder();
cb.remoteCache("my-cache")
    .transactionManagerLookup(RemoteTransactionManagerLookup.getInstance())
    .transactionMode(TransactionMode.NON_XA);

RemoteCacheManager rcm = new RemoteCacheManager(cb.build());

//The my-cache instance uses the RemoteCacheManager configuration.
RemoteCache<String, String> cache = rcm.getCache("my-cache");

//Return the transaction manager that the cache uses.
TransactionManager tm = cache.getTransactionManager();

//Perform a simple transaction.
tm.begin();
cache.put("k1", "v1");
System.out.println("K1 value is " + cache.get("k1"));
tm.commit();

4.8. Counter API

The MultimapCacheManager interface is the entry point to get a RemoteMultimapCache.

Hot Rod clients can retrieve the MultimapCacheManager interface as in the following example:

// create or obtain your RemoteCacheManager
RemoteCacheManager manager = ...;

// retrieve the MultimapCacheManager
MultimapCacheManager multimapCacheManager = RemoteMultimapCacheManagerFactory.from(manager);

// retrieve the RemoteMultimapCache
RemoteMultimapCache<Integer, String> people = multimapCacheManager.get("people");

// add key - values
people.put("coders", "Will");
people.put("coders", "Auri");
people.put("coders", "Pedro");

// retrieve single key with multiple values
Collection<String> coders = people.get("coders").join();

5. JUnit testing

Run JUnit tests for Infinispan.

5.1. Testing Infinispan with test containers

Run Infinispan Server instances using Testcontainers for faster, simpler JUnit tests.

The Infinispan Server test container is based on the official container image provided by Infinispan.

5.1.1. Starting the Infinispan test container

You can start the Infinispan Server container instance from any Java application as follows:

try (InfinispanContainer container = new InfinispanContainer()) {
   container.start();
   try (RemoteCacheManager cacheManager = container.getRemoteCacheManager()) {
      // Use the RemoteCacheManager
   }
}

5.1.2. Changing credentials

Infinispan Server is configured with the following default credentials:

  • Username: admin

  • Password: secret

Add custom credentials with the withUser() and withPassword() methods before starting the container:

InfinispanContainer container = new InfinispanContainer();
container.withUser("admin").withPassword("secret");
container.start();

5.1.3. Adding the test container to your project dependencies

Add the following dependency to your pom.xml file:

<dependency>
    <groupId>org.infinispan</groupId>
    <artifactId>infinispan-server-testdriver-core</artifactId>
    <version>{{latest_version}}</version>
    <scope>test</scope>
</dependency>
